HomepageDESOI AirPower L36-3C VA
17610_DESOI AirPower L36-3C VA.jpg
17610_DESOI AirPower L36-3C VA.jpg 17608_17610_DESOI AirPower L36-3C VA_Druckminderer.jpg 17608_17610_DESOI AirPower L36-3C VA_Manometerkombination.jpg

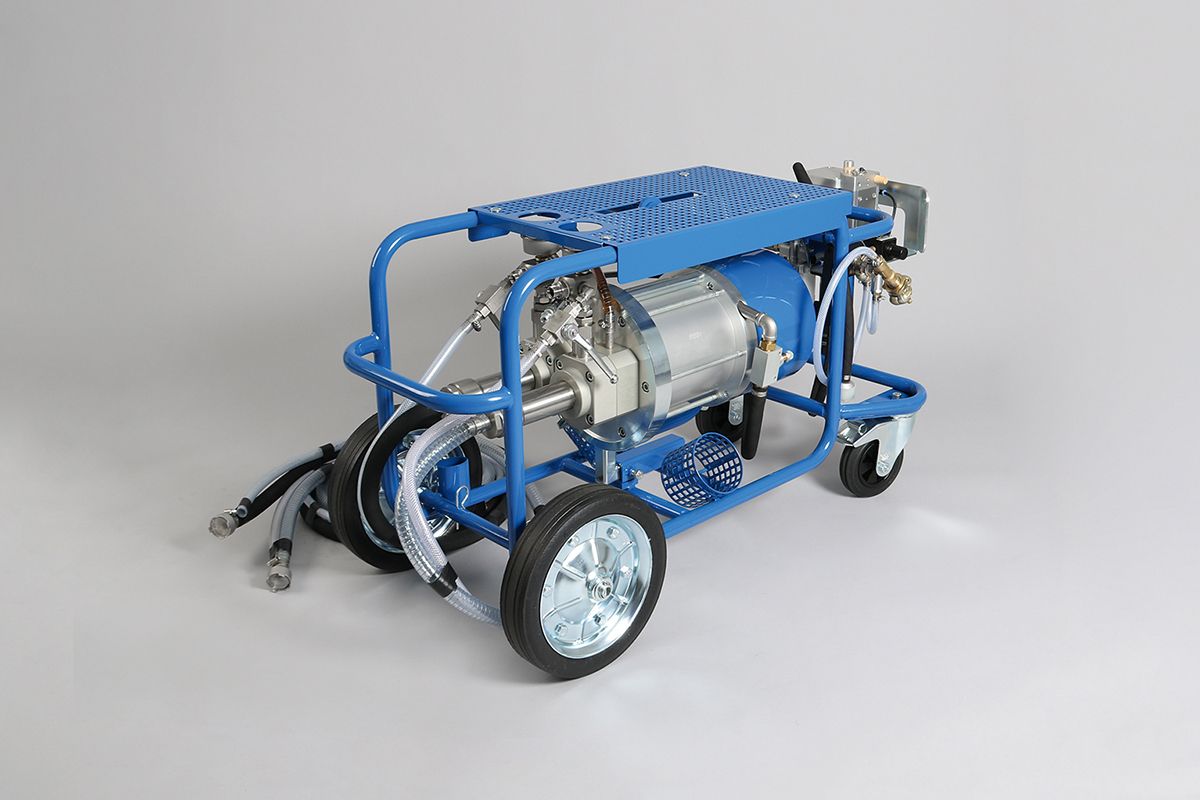

DESOI AirPower L36-3C VA

moving device, 2 x manometer combination 0 - 400 bar, and rinsing pump S25, suction hoses component A and B: 3 m, Ø 20 mm transparent with suction basket Ø 40 mm, component A: transparent, component B: black, suction hose rinsing pump: 1.5 m, Ø 13 mm black with suction basket Ø 40 mm, material hose connection: component A: external thread G1/2", component B: external thread G3/8", rinsing pump: external thread M12x1.5, return hoses Ø 13 mm - transparent, air connection package: claw coupling 42 mm, air plug NW 7.2, incl. instruction manual
Advantage/Notice
  • Manometers at machine outlet for pressure control of each components
  • Big material passages - for highly viscous material
  • Adjustment of the material volume
Material to be used
  • 2C injection resin
Technical data
Working pressure - infinitely variable 5 - 200 bar
Delivery rate max. 20 l/min
Air consumption 2.5 m³/min
Transmission ratio 1 : 25
Mixing ratio 1 : 1
Air pressure max. 8 bar
Weight 100 kg
L x W x H 127 x 57 x 64 cm
Rising pump type S-25
Working pressure - infinitely variable 7 - 220 bar
Delivery 5 l/min
Transmission ratio 1 : 28
Product description
The reciprocating pump DESOI AirPower L36-3C VA achieves a delivery of max. 20 l/min at a mixing ratio of 1 : 1. Due to the big valves and pistons also highly viscous material can be used without any problems. All material conducting parts are made of stainless steel. The pump is equipped with a separate rinsing pump. The result is a very maintenance-friendly machine including suitable accessories.
Accessories
