The DESOI w.i.l.m.a. can be upgraded to the PRO version. The PRO version contains an additional termination criterion and electronic pressure control.
Abort criterion: Pressure holding time
The set pressure is kept constant for a specified time to ensure optimum filling of all cracks and cavities. This is recorded and traceable in the injection log.

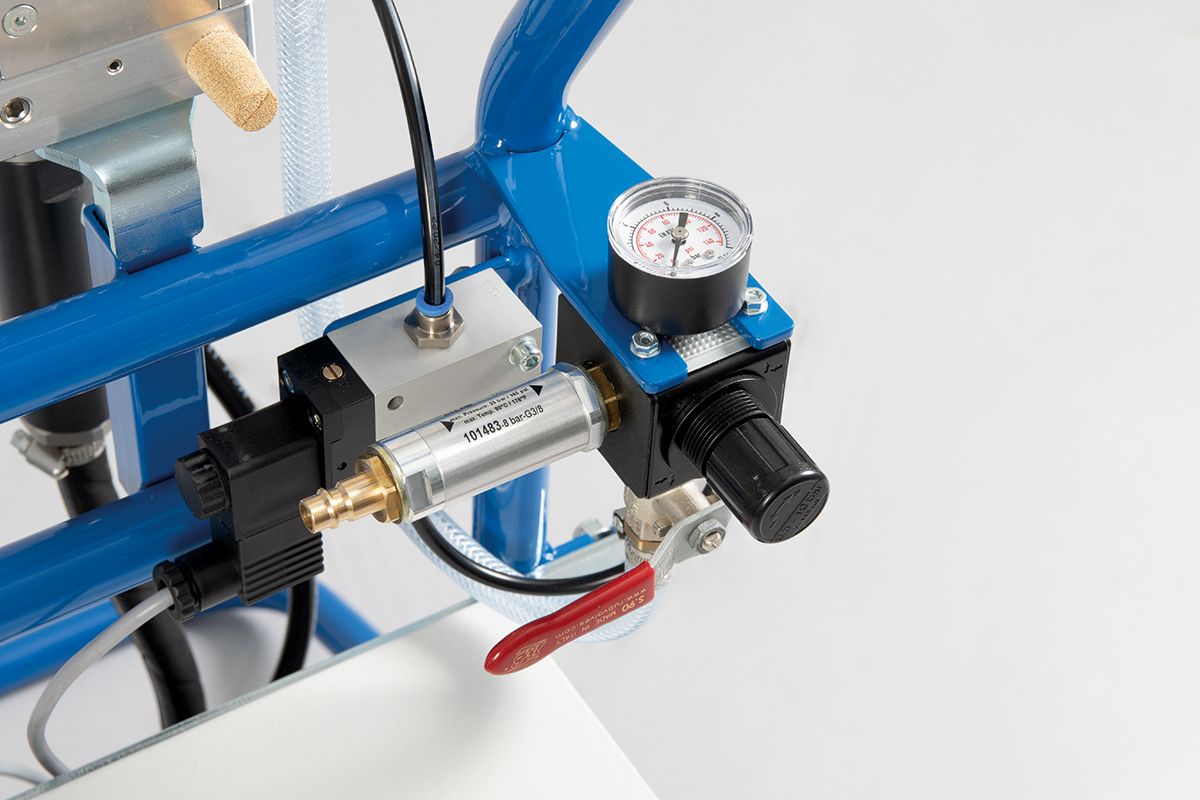

Electronic pressure control
When the electronic pressure control is activated, it is ensured that the set pressure is not exceeded (short-term pressure deviations may occur due to machine shutdown).

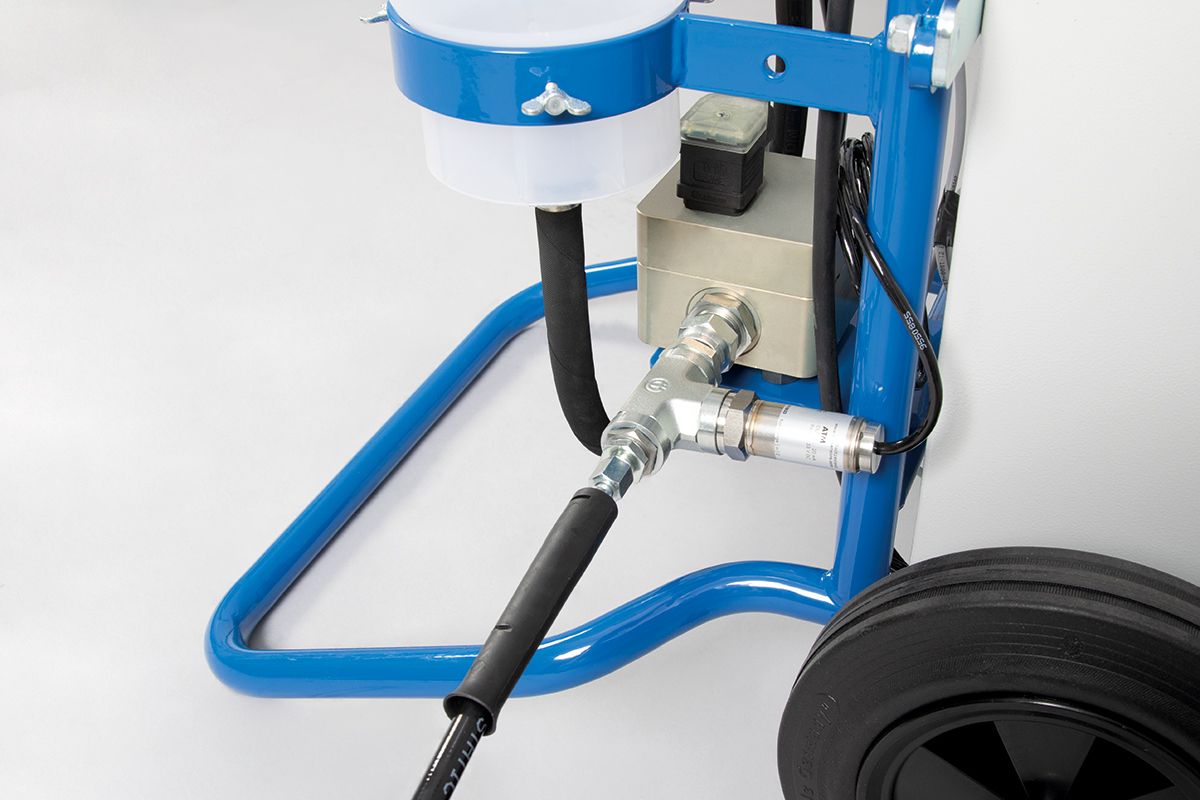

frame, 6 l material container transparent with scale and cover, material hose connection: external thread M12x1.5, air connection: air plug NW 7.2, DESOI w.i.l.m.a.: control cabinet with integrated control, 10 m supply cable, on/off switch, control lamp, flow sensor, pressure sensor, No. 16811: HP hose - steel Ø 6 mm, 10 m, union nuts M12x1.5 (solvent-resistant), No. 16733: HP injection gun 0 - 250 bar, (external thread M12x1.5; whip 0.3 m; mouth piece) Tablet Microsoft Surface Go 2 Platinum with protective cover, incl. instruction manual > A professional briefing is mandatory. > This is free of charge via video conference. > On-site instruction is also possible by arrangement and at a charge. > Arrival and departure are charged at cost. > A tariff must be selected for the w.i.l.m.a. data management system.
Item No:
14410
Unit:
1 piece
Log in
The entered access data are not correct. Please try again.
Big material passages - for highly viscous material
A tensioning of the piston sealings is not necessary
Easy maintenance and repair
You can find more information on the application and process techniques with the DESOI w.i.l.m.a. in the STUVA ABI leaflet "Sealing of structures by injection", 4th edition - Part III/1.3.2 from p. 57.
Material to be used
epoxy resin
polyurethane
quick-foaming polyurethane
Technical data
Working pressure - infinitely variable
7 - 220 bar
Delivery rate
5.1 l/min
Air consumption
1 m³/min
Transmission ratio
1:27.5
Air pressure
max. 8 bar
Air consumption and delivery rate at 100 bar back pressure (injection pressure)
Air consumption 90 l/min
Delivery rate 0.5 l/min
Air consumption 183 l/min
Delivery rate 1 l/min
Air consumption 308 l/min
Delivery rate 2 l/min
Air consumption 433 l/min
Delivery rate 3 l/min
Weight
13.7 kg
L x W x H
65 x 53 x 110 cm
Control cabinet
Supply voltage (adjustable ex works)
110 - 230 V/0,5 Ampere
Storage type
digitally on tablet
Data transfer
WLAN
Measuring range - volume (depending on the sensor)
100 l/min.
Measuring range - pressure (depending on the sensor)
max. 250 bar*
Measurement accuracy
± 2 % v ME
Weight
8.62 kg
L x W x H
30 x 19 x 33 cm
*1 bar = 105 Pa. (Pascal)
Tablet
Storage type
digitally on tablet
Hard disk space
64 GB
Data transfer
WLAN
Weight - tablet
1 kg
L x W x H - tablet
28 x 20 x 3 cm
Product description

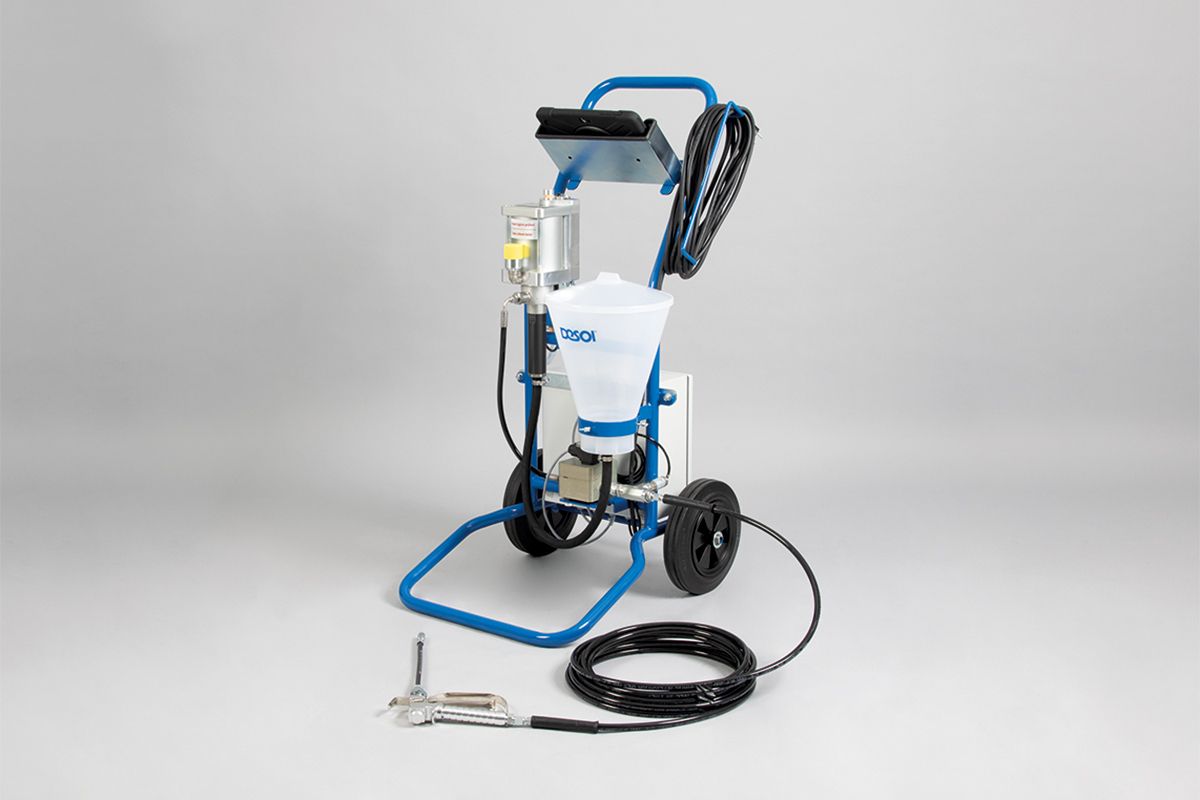

The pneumatic reciprocating pump DESOI AirPower S25 combines high capacity with compact design. Due to the directly mounted seals on the piston, retensioning is not necessary. The result is a very maintenance-friendly machine. DESOI w.i.l.m.a. monitors and documents the material consumption, the injection pressure and the mixing ratio.
